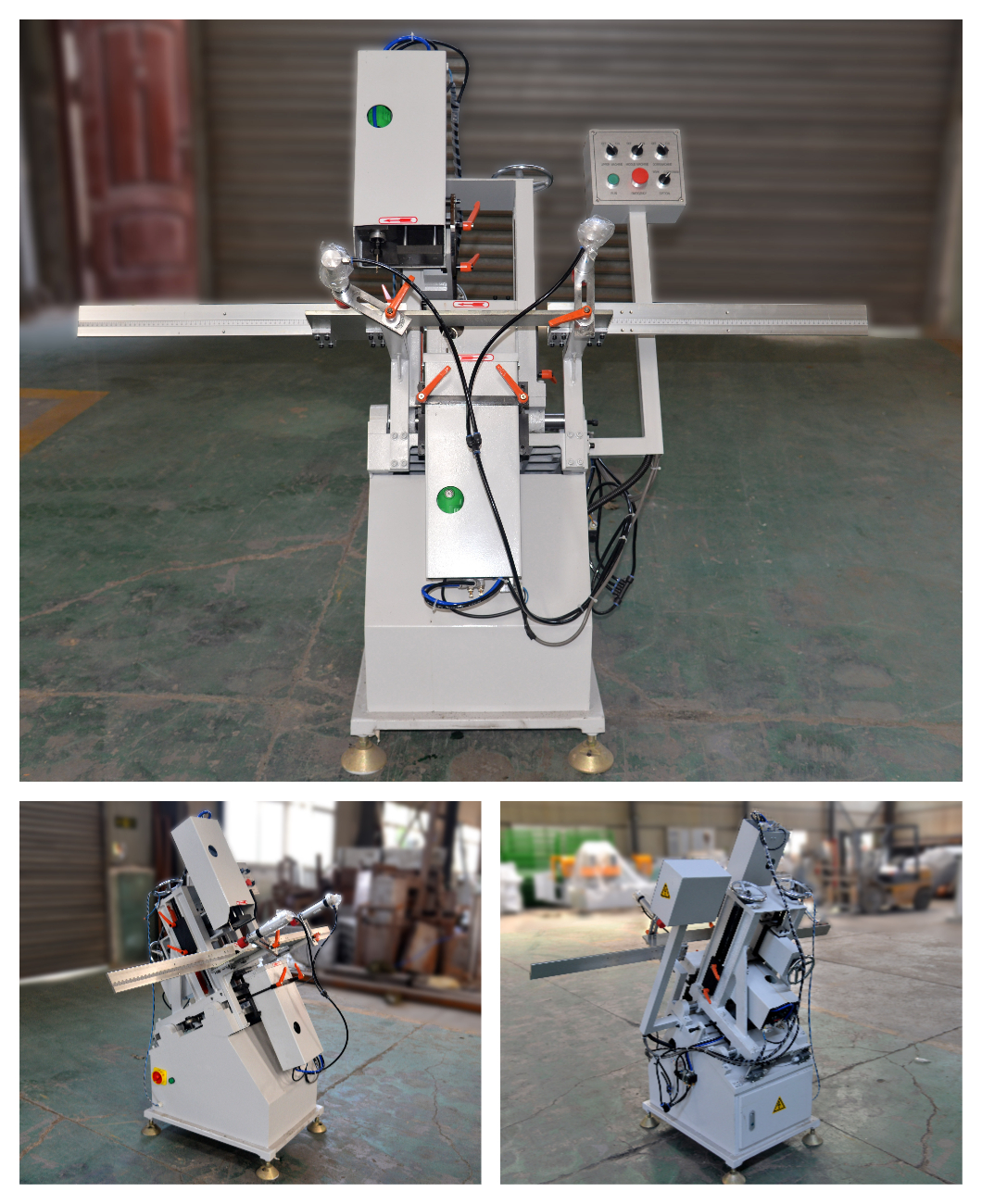

Auto Water Slot Milling Machine (Three Axis) WDCA-60

Auto Water Slot Milling Machine (Three Axis) WDCA-60

Short Description:

Product Detail

Product Tags

Milling all kinds of water slots and air pressure balance grooves.


Full design with high rigidity, processing beautiful water slot, high appearance quality.
Automatic cutter changer on the under head, one time clamp, two end water slots processing.
High efficiency, suitable for mass production.
Special feeding system, need no special maintenance, high milling quality.
lConvenient adjustment for the cutter location to meet different kinds of profiles.
Water slot milling length adjustable within 100mm, wide adaptability.
Adopt linear bearing motion to ensure the processing precision.

Main Parameter
Air Pressure 0.5~0.8(MPa)
Air Consumption 30(L/min)
Input Voltage 220V 50Hz
Main-shaft Revolution 25000(r/min)
Input Power 1.14(kW)
Cutter Diameter φ5 φ8 (mm)
Slot Length 0~100(mm)
Overall Dimension 1200×1200×1800(mm)
Weight 300(kg)
