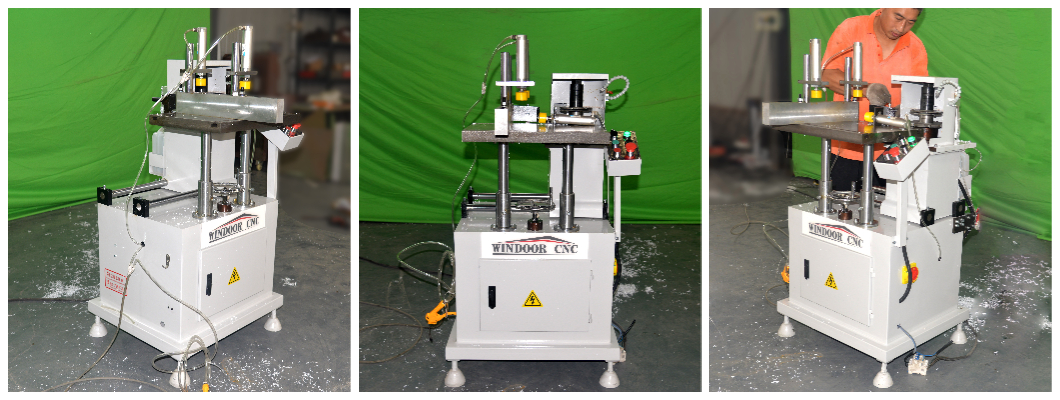

End Milling Machine WDDW-200

End Milling Machine WDDW-200

Short Description:

Product Detail

Product Tags

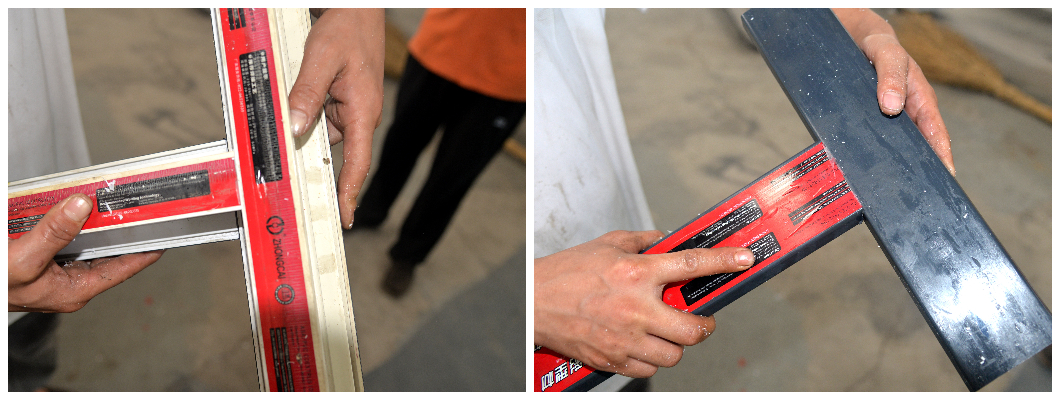

For mullion end surface mllin, suitable for mechanical joint type mullion.

Main Features

Pneumatic feeding.
Changeable cutters can realize the milling of different sections and angles for various profiles processing.

Main Parameter
Input Voltage 380V 50HZ Locating Board Rotate Angle -55°  +55°
Input Power 1.5Kw Cutter Spindle Travel Range  36mm
Air Pressure 0.5~0.8MPa Max. Processing Dimension 200mm * 45mm*110mm(L *D*H)
Air Consumption 10L/min Overall Dimension 1060mm*800mm*1300mm
Main-shaft Revolution 2800r/min Weight 240kg
