Lock Hole Processing Machine WDSA-100

Lock Hole Processing Machine WDSA-100

Short Description:

Product Detail

Product Tags

Milling all kinds of lock holes
Features :
1. Formed by three-hole drill part (horizontal direction) and copy milling part (vertical direction)
2. the height of three-hole drilling can be adjusted easily
3. three-hole drill designed behind and operated easily.
4. adopt vertical axis to ensure the parallel precision of the three-hole drill
5 adopt hydro-pneumatic actuator cylinder feeding to save labor.
6  easy adjustment of the processing position

Operation Air Pressure  0.5~0.8(MPa)
Air Consumption 20L/min
Input Voltage 380 50Hz
Main-Shaft Revolution  11200/910(r/min)
Input Power  1.1 (kW)),0.75(kW)
Three-hole Cutter Diameter Φ12,φ10(mm)
Copy cutter diameter Φ5, Φ8
Copy Milling Range: 90×290(mm)
Overall Dimension  3150 x 1020 x 1600 mm
Machine Weight 400(kg)

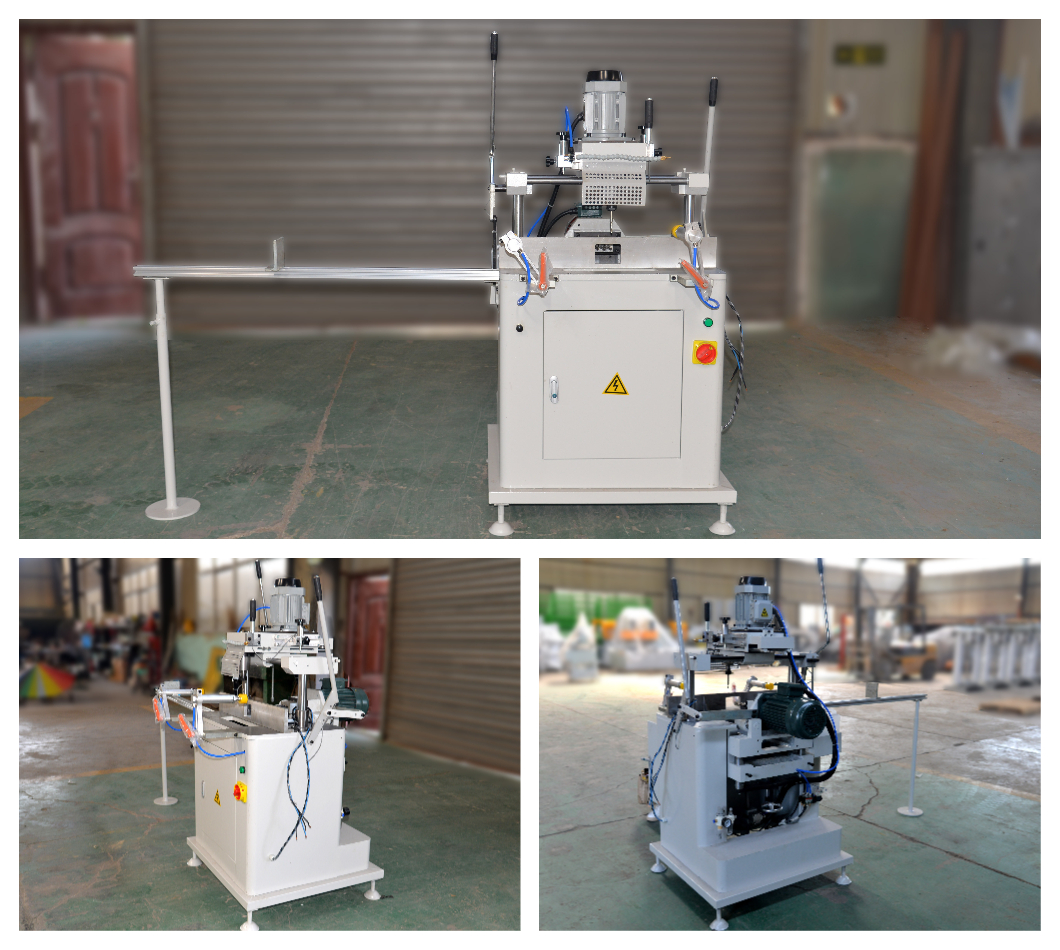

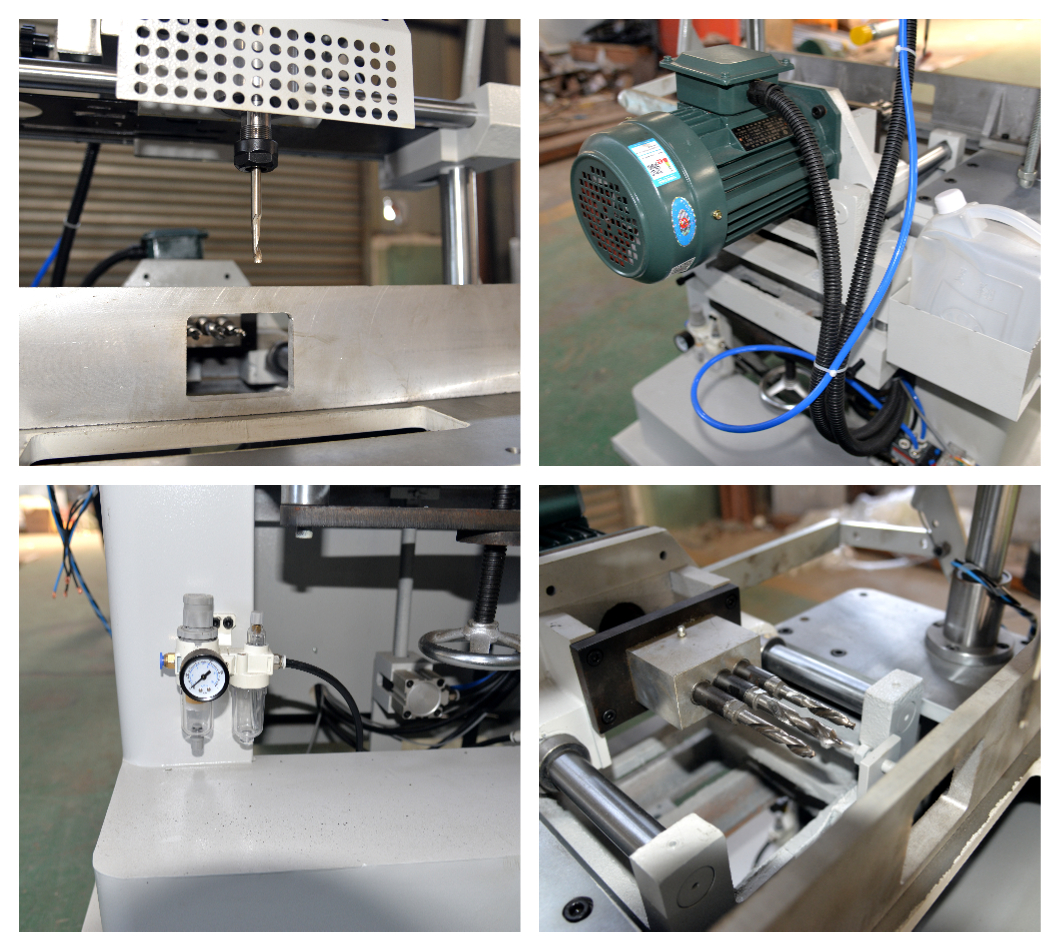

不同角度 细节图
