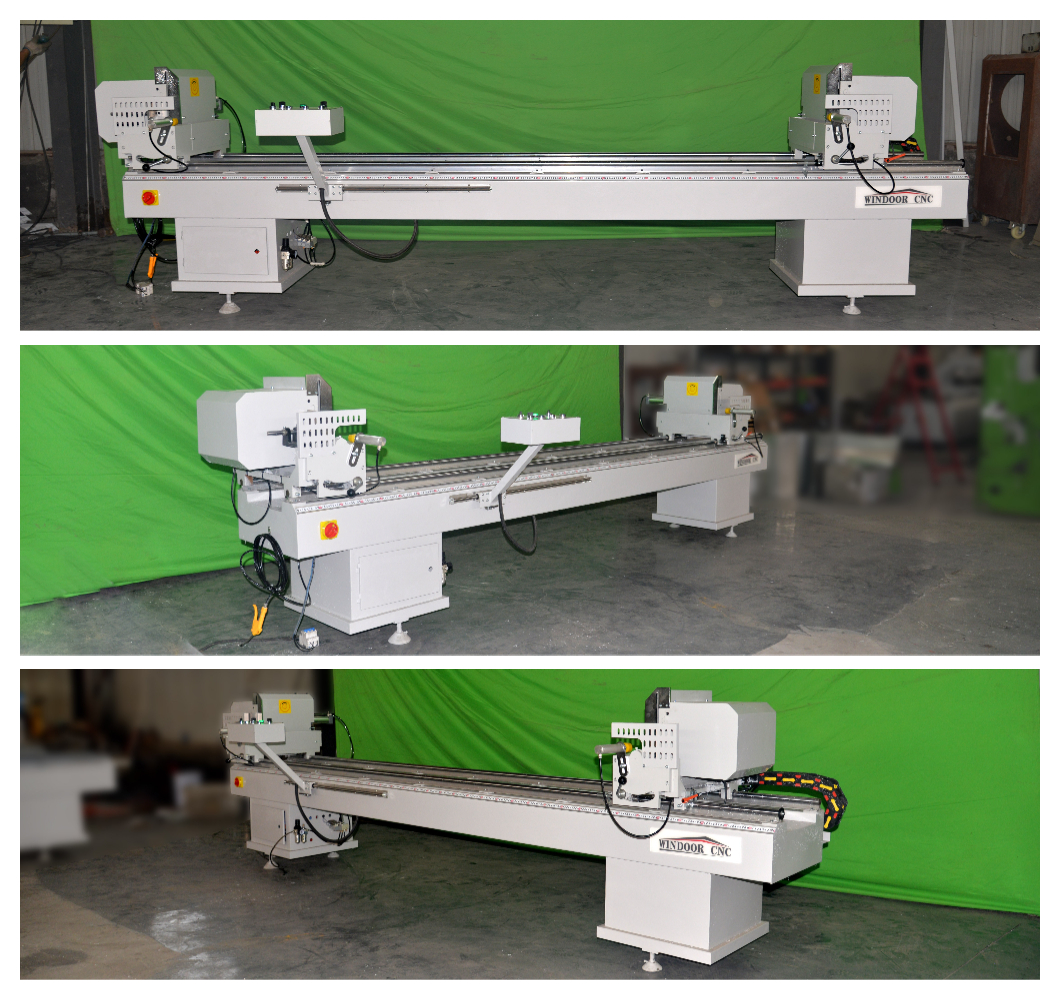

Window double head cutting saw WDZ2-400*3500

Window double head cutting saw WDZ2-400*3500

Short Description:

Product Detail

Product Tags


Processing performance and characteristics:

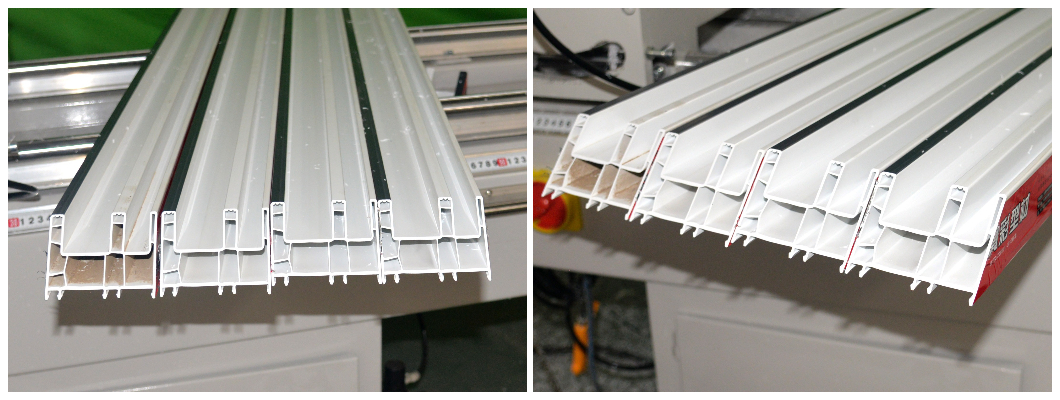

Suitable for cutting UPVC profiles.


Angle range: 45 °, 90 °, angle manual indexing.


Adopting a motor directly connected saw blade and a rear push cutting method.


The right handpiece moves through a linear guide rail, making it convenient and durable.


Technical parameters:


Input power supply 380V/50Hz, total power 2.2KW


Working pressure 0.4-0.6MPa, gas consumption 200L/min


Saw blade speed 2800r/min, maximum cutting section 100 * 200mm


Double cutting length 450-3500mm saw blade diameter: 400mm


Overall size 4000 × 1100 × 1400mm


Weight 450kg
