Two Head Miter Saw WDA2-450*3600

Two Head Miter Saw WDA2-450*3600

Short Description:

Product Detail

Product Tags

Function:Used for 45°~90°plastic and Aluminum profile cutting

Equipped with cutting angle fine adjustment device.
lStraight line feeding type; the guide for machine body and feeding system adopt linear bearing system to ensure stable feeding and high cutting precision.
lOptional: Machine head could adopt air-hydraulic damping cylinder to cut Aluminium profile.
lSame shaft angle-changing structure for good surface cutting performance.
lProfile supporter is available on the movable head.
lAutomatic cutting angle change for 45°and 90°.
lOne time two pieces of profile cutting (height of profile less then 60mm).
lWith short profile cutting device on left machine head can realize super short profile cutting.

Main Parameter
Air Pressure  0.5-0.8(MPa)
Air Consumption  50(L/min)
Input Voltage 380V 50Hz
Input Power 5.25(Kw)
Spindle RotarySpeed 2800(r/min)
Cutting Height 120(mm)
Cutting Width 120(mm)
Cutting Length 300-2100(mm)
Overall Dimension 6300mm*1300mm*1650mm
Weight 1200(kg)

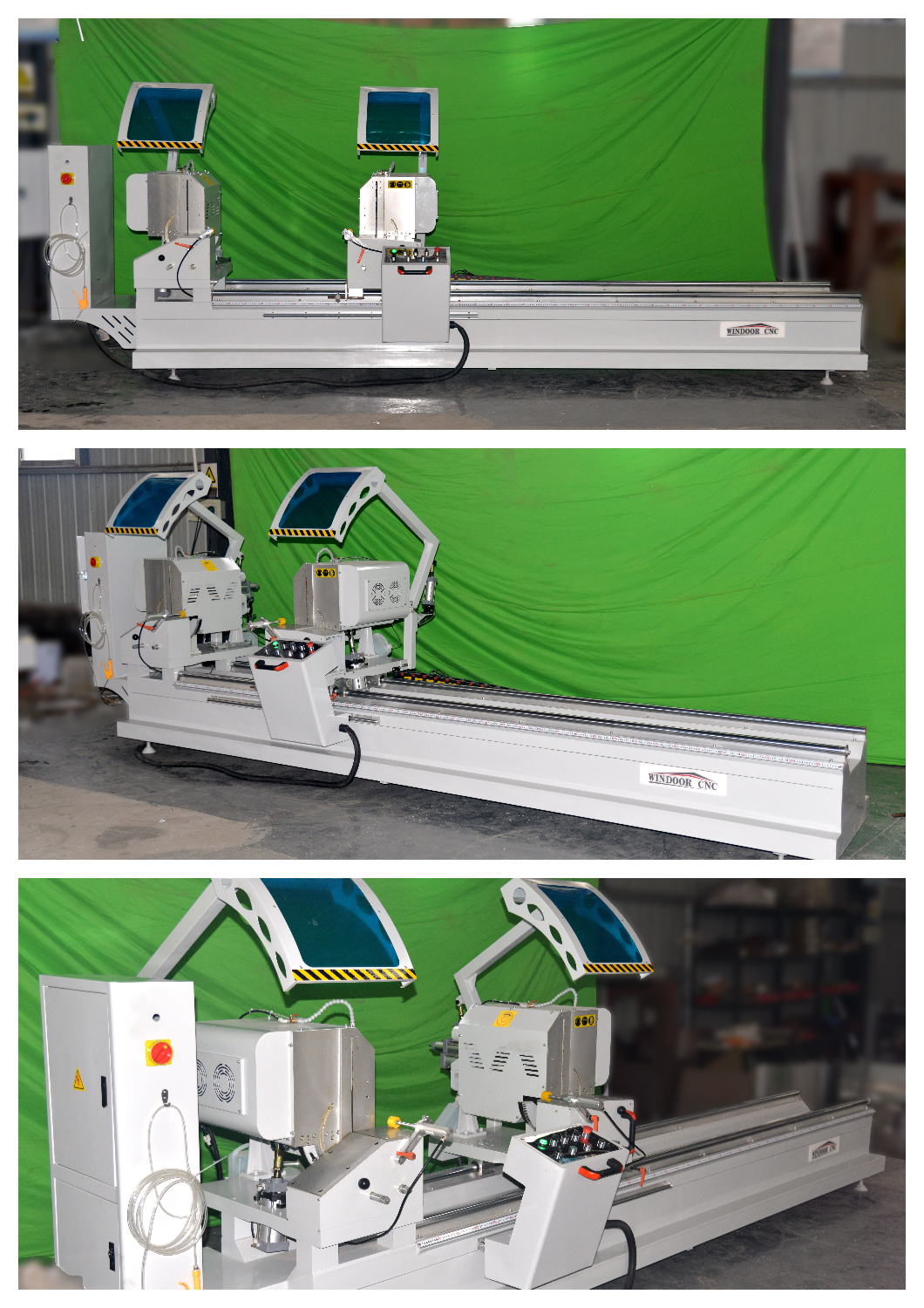

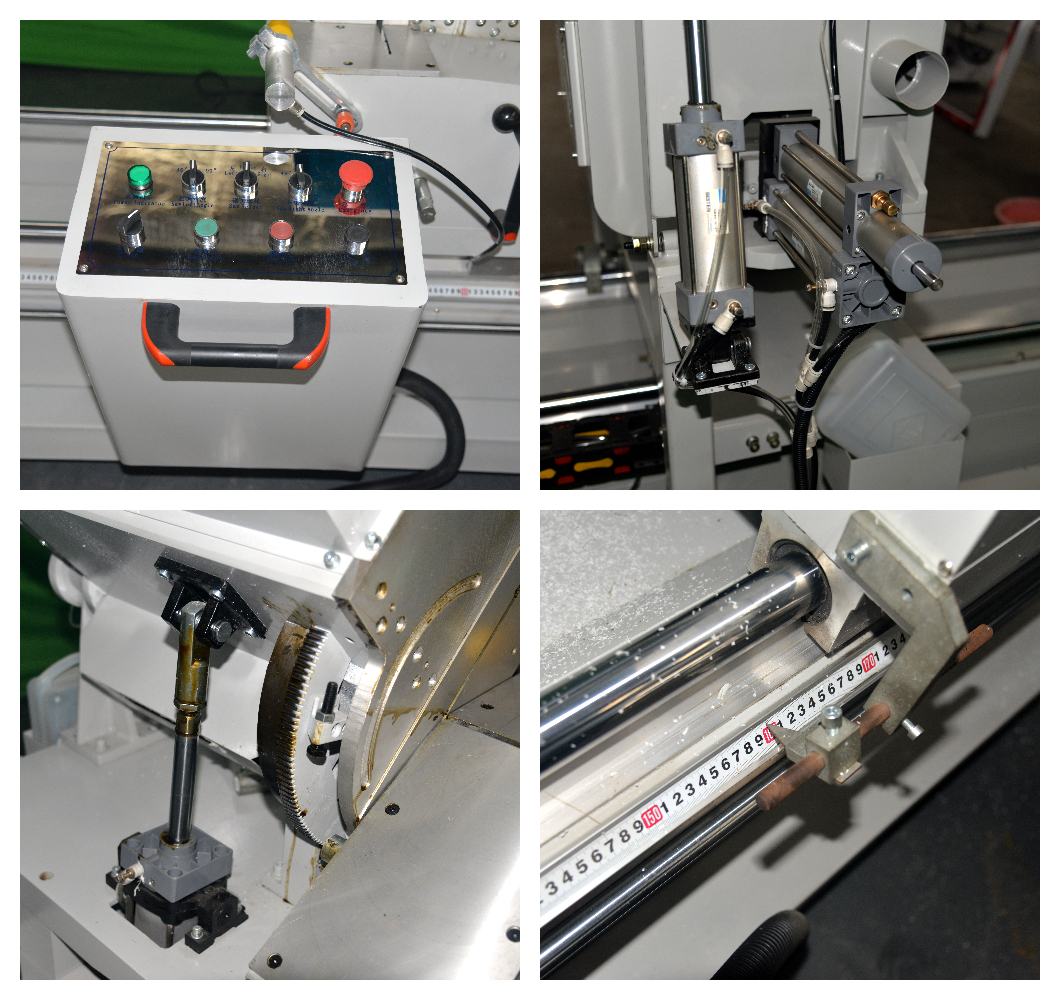

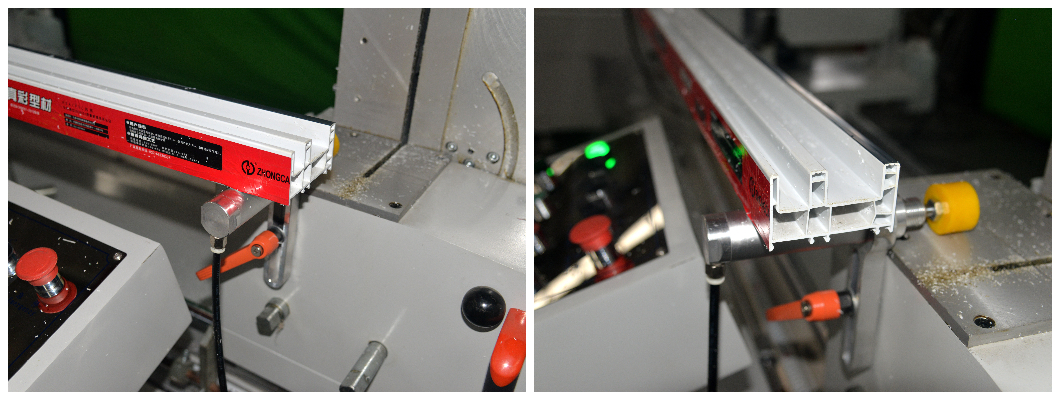

不同角度 细节图 成品展示
